GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor Bolts

Supanchor Rock Reinforcement Co., Ltd.
Contact Now

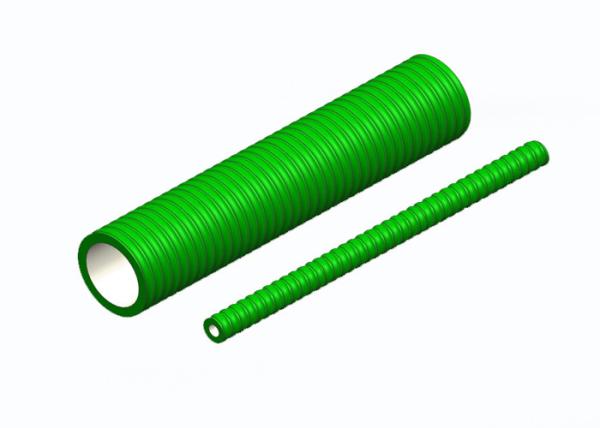

GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor Bolts

  • 1
  • 2

Brand Name : SupFRP

Model Number : H76S

Certification : ISO, SGS, NATA

Place of Origin : Jiangsu, China

MOQ : 3 meters

Price : 1 - 30 USD

Payment Terms : L/C, T/T

Supply Ability : 50,000 meters per month

Delivery Time : 1 to 6 weeks

Packaging Details : Packed in bundle with package paper.

Name : SupFRP H76S Fiberglass Anchor Bolt

Tensile Load (kN) : 680

O.D. (mm) : 76

Tensile E-Modulus (GPa) : 45

I.D. (mm) : 60

Cross Sectional Area (mm2) : 1.130mm2

Length (m) : Any length by customized

Unit Weight (Kg/m) : 3.10

Contact Now

Features

The SupFRP® GFRP SDA fiberglass anchor bolt s developed for permanent applications requiring higher levels of corrosion resistance than standard structural steels.

SupFRP® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

  • High corrosion resistance
  • Cut any length at job site
  • 100+ year service life

Advantages

  • Super high torque resistance
  • High end loading
  • Easy handing
  • Light weight
  • ISO standard thread profile
  • Transportation cost saving

Applications

  • Tunneling
  • Mining
  • Forepoling
  • Face stabilization
  • Ground support in soft rock
  • Roof and wall bolting
  • Foundatioin

Technical data

Product Type GFRP SDA Bolt H76S
Material GFRP (Fiberglass+Epoxy Resin)

Characteristic Type Unit Value
Dia.Outside mm 76
Dia.Inner Hole mm 60
Nominal Cross Sectional Area mm2 1,130
Guaranteed Tensile Load KN 680
Tensile E-Modulus GPa 45
Ultimate Strain % 2.0
End Load Steel Nut L100 KN 220
Steel Coupler L200 KN 220
Torsion Strength Nm /
Weight kg/m 3.10


GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor BoltsAccessories

Application

GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor Bolts

GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor Bolts

GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor Bolts

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

Quality System

Quality Inspection Rate
Mechanical strength test ratio >= 3%
Dimensions test ratio = 100%
Surface inspection ratio = 100%
QC Procedure
SupAnchor GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor Boltshas its own quality tracking systems. Every batch of anchor bar has its unique batch
number, which can be tracked from raw materials till installation.
Being the GFRP / BFRP / CFRP 76mm Soil Nailing H76S Fiberglass Anchor BoltsNo.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
