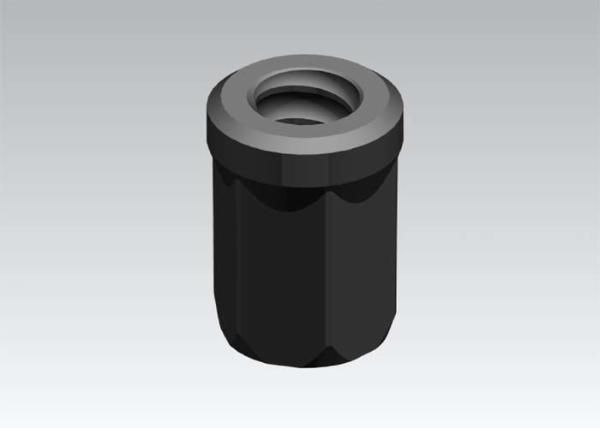

H38S SDA Fiberglass Bolt Flat Nut SW65 L80mm GFRP Nut
Features
GFRP nuts are used in technical fields that have high demands on electrical, chemical and thermal properties.GFRP nuts are based on glass fibre reinforced epoxy or polyester resin Systems with special additives and a special structure.
Advantages
much lighter
elekctrical and thermal insulating
corrosion resistant
resistant to aggressiva media
Technical data
| GFRP SDA Bolt Flat Nut | H25S | H28S | H32S | H38S | H40S | H45S |
| Key Size (mm) | 36 | 41 | 46 | 52 | 52 | 60 |
| Internal 45Diameter (mm) | 25 | 28 | 32 | 38 | 40 | 45 |
| Length (mm) | 70 | 70 | 70 | 80 | 80 | 80 |
| Guaranteed tensile load (kN) | 70 | 80 | 80 | 80 | 80 | 120 |
| Weight (kg/m) | 0.09 | 0.12 | 0.12 | 0.30 | 0.30 | 0.27 |
| Thread type(ISO) | R25 | R28 | R32 | R38 | R40 | R45 |
Accessories
Application
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
Quality System
QC Procedure
SupAnchor
has its own quality tracking systems. Every batch of anchor bar has its unique batch number, which can be tracked from raw materials till installation.
Being the No.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
| Mechanical strength test ratio | >= |
