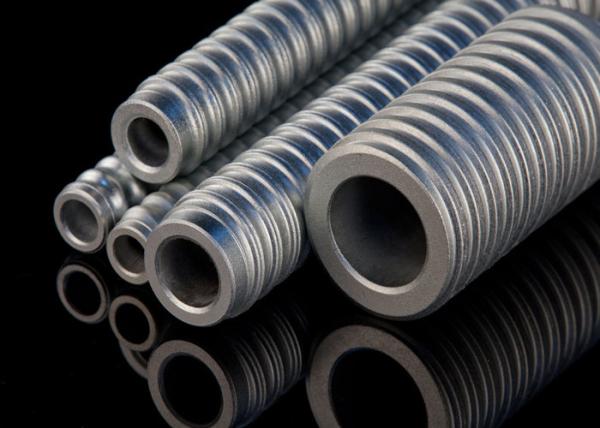

SSTR32/360 Yield Load 280kN 32mm Hollow Anchor Rods

  • 1
  • 2

Brand Name : SupAnchor

Model Number : SSTR32/360

Certification : ISO, SGS, ITB, IBDIM

Place of Origin : Jiangsu, China

MOQ : 3 meters

Price : 1 - 30 USD

Payment Terms : L/C, T/T

Supply Ability : 200,000 meters per month

Delivery Time : 1 to 6 weeks

Packaging Details : Packed in bundle with package paper.

Name : SupAnchor SSTR32/360 Stainless Steel Anchor Rod

Thread Type : ISO 10208 / Left or right

Ultimate Load (kN) : 360

O.D. (mm) : 32

Length (m) : 2/3/4/5/6

Yield Load (kN) : 280

Cross Sectional Area (mm2) : 382

Unit Weight (Kg/m) : 3.00

Contact Now

Self Drilling 32mm 100+ Years Service Life Stainless Steel Hollow Anchor Rods SSTR32/360

Features

In general it is reasonable to use grade 304 for most non-marine applications, highways and marine structures generally call for grade 316 because of high chloride concentrations. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

  • High corrosion resistance

  • Tensile Strength (N/mm2 ) >= 1000 N/mm2

  • 100+ year service life

Advantages

  • Unique corrosive resistant

  • Proven high bond strength

  • High strength thread

  • 2m to 6m standard lengths

  • Superior ductility for seismic activity

Applications

  • Soil nails

  • Docks and harbours

  • Holding down bolts

  • Building and bridge cross ties

  • Coastal defence walls, slopes and slabs

  • Ground anchors

  • Rock bolts

Technical Data

Stainless Steel

Anchor Bar

SSTR25/

200

SSTR32/

250

SSTR32/

280

SSTR32/

320

SSTR32/

360

SSTR32/

400
Ultimate load (kN) ≧200 ≧250 ≧280 ≧320 ≧360 ≧400
Yield load (kN) ≧150 ≧200 ≧230 ≧260 ≧280 ≧320
Tensile Strength (N/mm2) ≧1000 ≧1000 ≧1000 ≧1000 ≧1000 ≧1000
Outside Diameter (mm) 25 32 32 32 32 32
Cross sectional area (mm2) 229 266 299 336 382 433
Weight (kg/m) 1.80 2.10 2.35 2.65 3.00 3.40
Thread type ISO 10208 / Left or Right
Length (m) 2/3/4/5/6
Type of Stainless Steel 1.4462 / 304 / 316
Chemical composition .% Cr Ni C Si Mn P S
1.4462 Stainless steel 21.0 - 23.0 4.5 - 6.5 ≦ 0.03 ≦ 1.0 ≦ 2.0 ≦ 0.03 ≦ 0.02
304 Stainless steel 18.0 - 20.0 8.0 - 10.5 ≦ 0.08 ≦ 0.75 ≦ 2.0 ≦ 0.045 ≤ 0.03
316 Stainless steel 16.0 - 18.0 10.0 - 14.0 ≦ 0.08 ≦ 1.0 ≦ 2.0 ≦ 0.045 ≤ 0.03

Anchor Bar and Accessories

SSTR32/360 Yield Load 280kN 32mm Hollow Anchor Rods

Job sites
SSTR32/360 Yield Load 280kN 32mm Hollow Anchor Rods

SSTR32/360 Yield Load 280kN 32mm Hollow Anchor RodsSSTR32/360 Yield Load 280kN 32mm Hollow Anchor Rods
