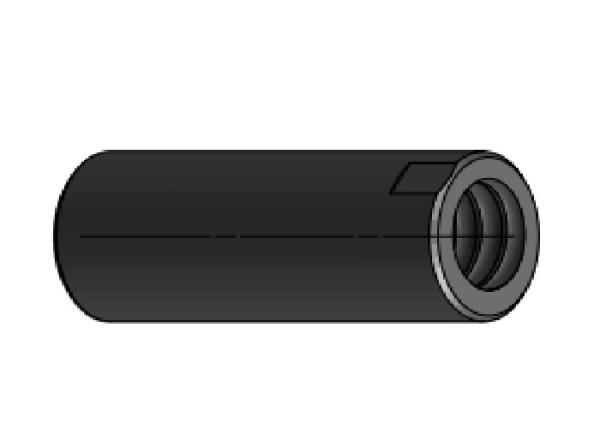

Steel Coupler For Self Drilling Fiberglass 32mm Anchor Bolt In Tunneling
Features
The SupFRP® GFRP SDA Bolt can be used in soft rock or clay soil, for the reinforcement of the face of the tunnel or for slope stabilization. The anchor coupler enables direct energy end-to-end transmission between the bar and bar. It can reduce loss and ensure maximum percussive energy at the drill bit. According to the minimum load specifications, the anchor coupling is guaranteed to have at least the same ultimate breaking load as the SDA dimension.
Technical data
| Anchor Coupling | H32S |
| Outside Diameter (mm) | 42 |
| Length (mm ) | 120 |
| Thread type | ISO10208 - R32 / Left or Right |
| Type of steel | 40Cr |
| Unit Weight (kg) | 0.63 |
| Hardness | HRC 20-30 |
| Options of Anti-corrosion | Hot-dipped Galvanization / Epoxy Coating / SupCoat
*Hot-dipped Galvanization: ISO 1461. *Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007. *SupCoat: HDG + EC |
Accessories
Application
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
Quality System
QC Procedure
SupAnchor
has its own quality tracking systems. Every batch of anchor bar has its unique batch number, which can be tracked from raw materials till installation.
Being the No.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
