R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 Standard

Product Categories
Supanchor Rock Reinforcement Co., Ltd.
Contact Now

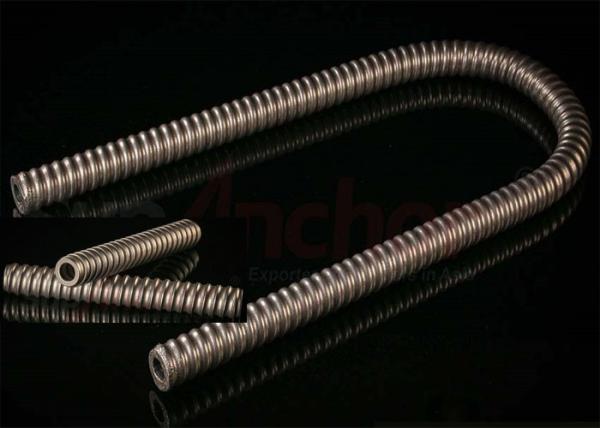

R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 Standard

  • 1
  • 2

Brand Name : SupAnchor

Model Number : SSTR38/660

Certification : ISO, SGS, CE, ITB, IBDIM

Place of Origin : Jiangsu, China

MOQ : 3 meters

Price : 1 - 30 USD

Payment Terms : L/C, T/T

Supply Ability : 200,000 meters per month

Delivery Time : 1 to 6 weeks

Packaging Details : Packed in bundle with package paper.

Name : SupAnchor SSTR38/660 Stainless Steel Anchor Rod

Thread Type : ISO 10208 / Left or right

Ultimate Load (kN) : 660

TR Thread Bars : R38N/19 T40/20 T40/16

O.D. (mm) : 38

Yield Load (kN) : 280

Tensile Strength （N/mm2 ) : 1,000

Cross Sectional Area (mm2) : 525

Unit Weight (Kg/m) : 5.75

Elongation Agt : 5%

Contact Now

High Anti-Corrosion SSTR38/660 Self Drilling Anchor Bar Stainless Steel Grade 1.4462

Features

Double yield strength

The yield strength of #1.4462 stainless steel is twice as high as the one of #316 and #304 stainless steel.

(EN 10088 / ASTM A240)
High ductility

High ductility makes all #1.4462 stainless steel anchor hollow bars achieve Elongation Agt ≥ 5%.

(DIN EN 10080 / DIN 488).
Superior anti corrosion quality

Extremely high corrosion due to unique quality of high Ni & Cr and low carbon content (EN 10088/1–2005)

Cr: 21-23 / Ni: 4.5-6.5 / C: ≤ 0.03 (%)
Lighter unit weight and lower cost Double yield strength helps #1.4462 stainless steel to be designed with lighter unit weight and lower cost.

TR thread,

T thread can connect R thtead

 Unique TR thread design noly only achieves the crack widths to stay below the maximum permissible width of 0.1mm (DIN EN 10080 / DIN 488), but also matches perfectly to all the standard R threads in the market (R32&R38/ ISO 10208, R51/ISO1720).

Applications

  • Coastal defence walls, slopes and slabs

  • mining

  • Soil nails

  • Docks and harbours

  • Building and bridge cross ties

  • Ground anchors

  • Holding down bolts

  • Tunelling

Technical Data

Anchor Bars Type

1.4462 Stainless Steel

Weight

kg / m

UL / YL

kN

 Elongation

TR thread Bars

Alternative Specification

TR thread

Can Connect

R thread
Anchor Bar Type

UL / YL

kN
SSTR32/360 3.2 360 / 280 Agt ≥ 5%

R32N/19

R32S/15

T30/11

280 / 230

360 / 280

320 / 260

Couplers

Nuts

Drilling Bits

Drill

Adapters
SSTR38/660 5.75 660 / 525 Agt ≥ 5%

R38N/19

T40/20

T40/16

500 / 400

540 / 430

660 / 525
SSTR51/930 8.0 930 / 730 Agt ≥ 5%

R51N/33

T52/26

800 / 630

929 / 730
Type of Stainless Steel 1.4462
Chemical composition .% Cr Ni C Si Mn P S
1.4462 Stainless steel 21.0 - 23.0 4.5 - 6.5 ≦ 0.03 ≦ 1.0 ≦ 2.0 ≦ 0.03 ≦ 0.02

Anchor Bar and Accessories

R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 Standard

Job sites
R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 Standard

R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 StandardR38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 Standard

SubNumbers

10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.

20 Years - 20 years of exporting experience, familiar with different product standards from different

customers and countries.

26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar

manufacturer in Asia.

60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by

customers from 50 countries all over the world, including America, Chile, Germany,

Australia India, etc.

1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.

Quality System

QC Procedure
SupAnchor R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 Standardhas its own quality tracking systems. Every batch of anchor bar has its unique batch
number, which can be tracked from raw materials till installation.
Being the R38N TR Thread Self Drilling Anchor Bar Stainless Steel ISO 10208 StandardNo.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest
concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
Mechanical strength test ratio >= 3%
Dimensions test ratio = 100%
Surface inspection ratio = 100%
